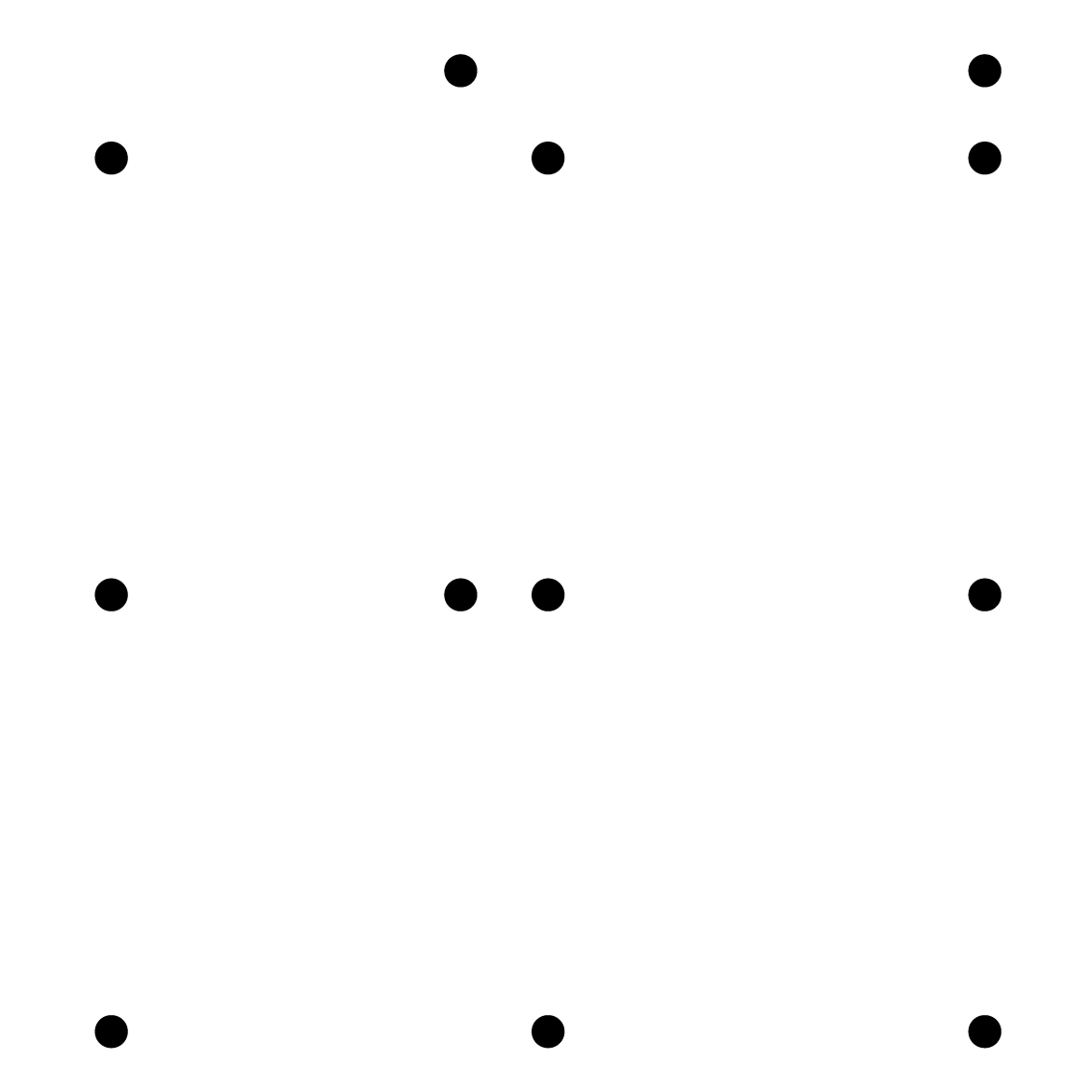

Sun zoom Detail 20 cm x 20 cm Sun panel Full size panel PDF File Datasheet Obersound Sun PDF File Acoustic test result PDF File Obersound - How to specify form.pdf
Download A project ?

Customizable model on configurator.

Structure of the panel : Oberflex decorative surface (wood or solid color) + 16 mm MDF substrate (natural or black) + balancing + black felt. More infos

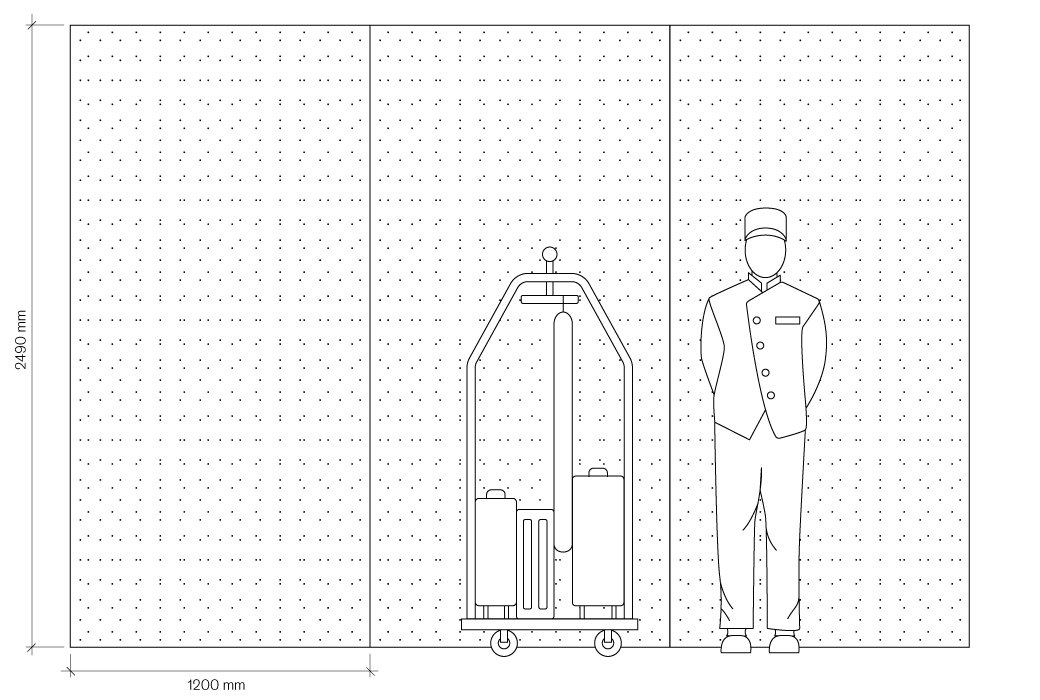

Standard dimension : 2490 x 1200 mm (for wood surfaces, first dimension indicates the wood grain direction )

Other dimensions : custom-made panels according to a plan and/or a cutting list

Total thickness : 18 mm

Fire rating : M1 or Euroclass Bs1d0

Acoustic performances :

  • Average absorption coefficient αw : 0,25
  • Perforation rate : 2,6 %

Registered pattern

More infos about acoustic



Datasheet Obersound Sun Acoustic test result Obersound - How to specify form.pdf
team Studio 5.5 Studio 5.5

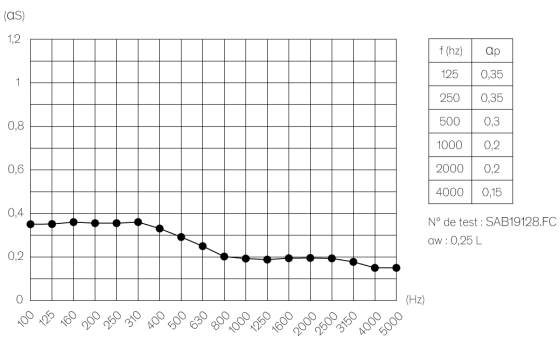

Acoustic performance

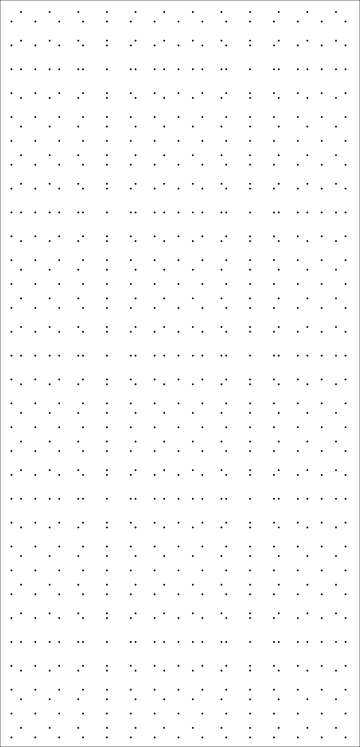

Sun panel
Sun_courbe

Applications

Wall
Wall
Ceilings
Ceilings
Furniture
Furniture

In situ
