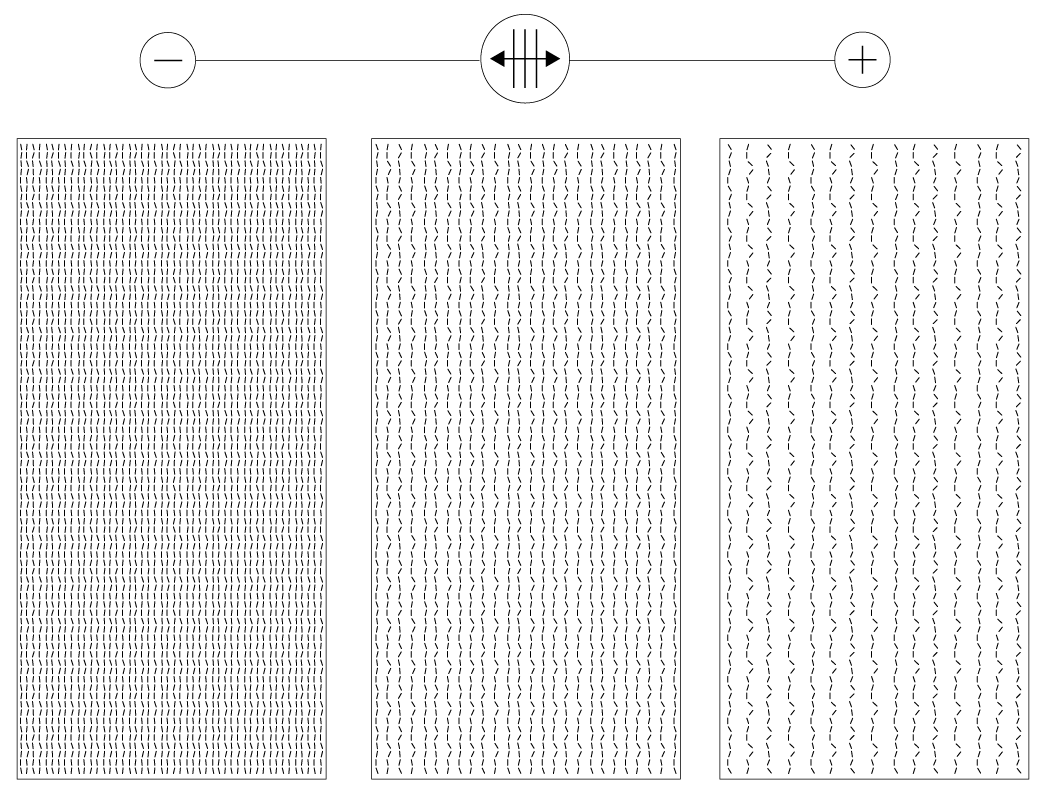

Customizable model on configurator.

Structure of the panel : Oberflex decorative surface (wood, solid color or metal) + 16 mm MDF substrate (natural or black) + balancing + black felt. More infos

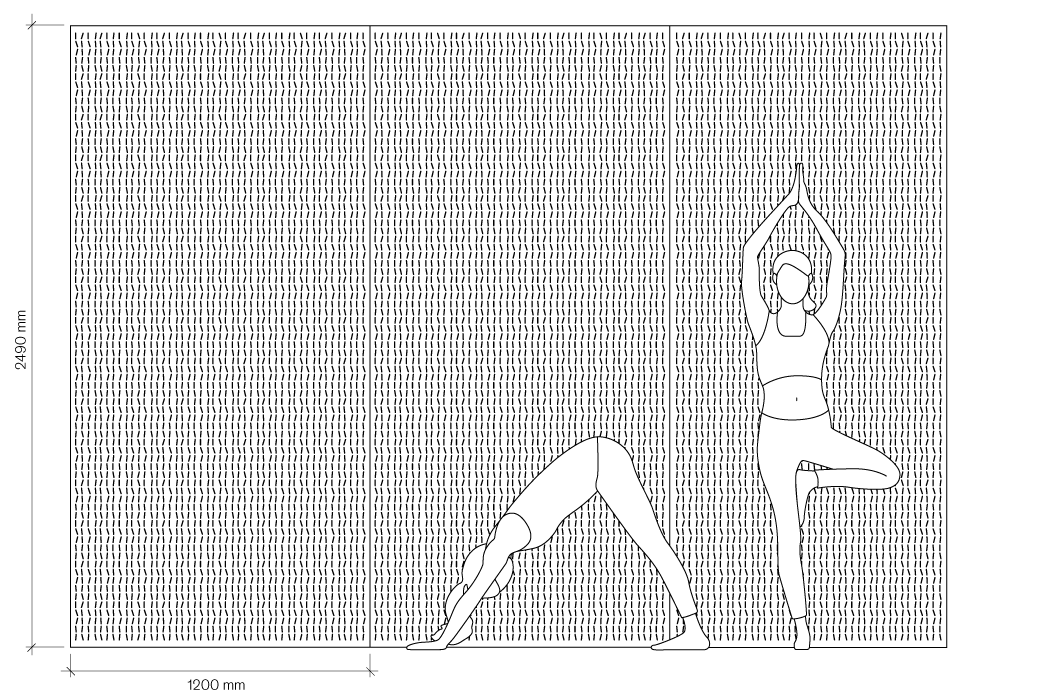

Standard dimension : 2490 x 1200 mm

Other dimensions : custom-made panels according to a plan and/or a cutting list

Total thickness : 18 mm

Fire rating : M1 or Euroclass Bs1d0

Acoustic performances :

  • Average absorption coefficient αw : 0,8 (results based on configuration with the highest perforation rate)
  • Perforation rate : 12,12 % (based on configuration with the highest perforation rate)

Registered pattern

More infos about acoustic



Datasheet Obersound Stretch Obersound - How to specify form.pdf
team Studio 5.5 Studio 5.5

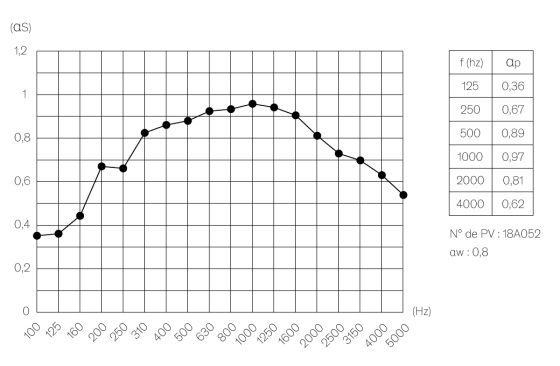

Acoustic performance

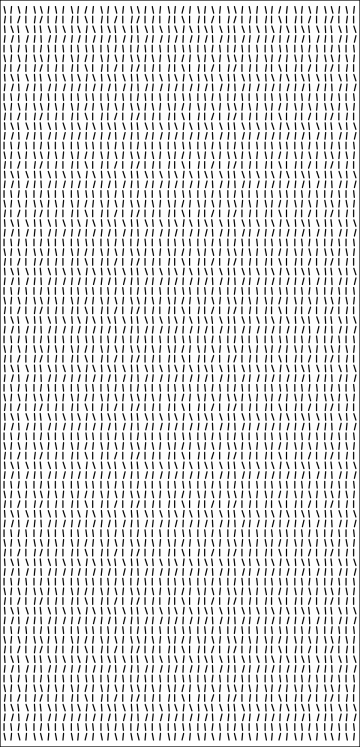

Etirer panel
Etirer courbe
