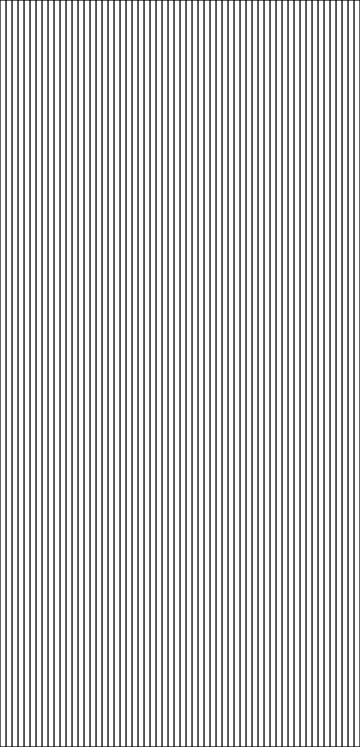

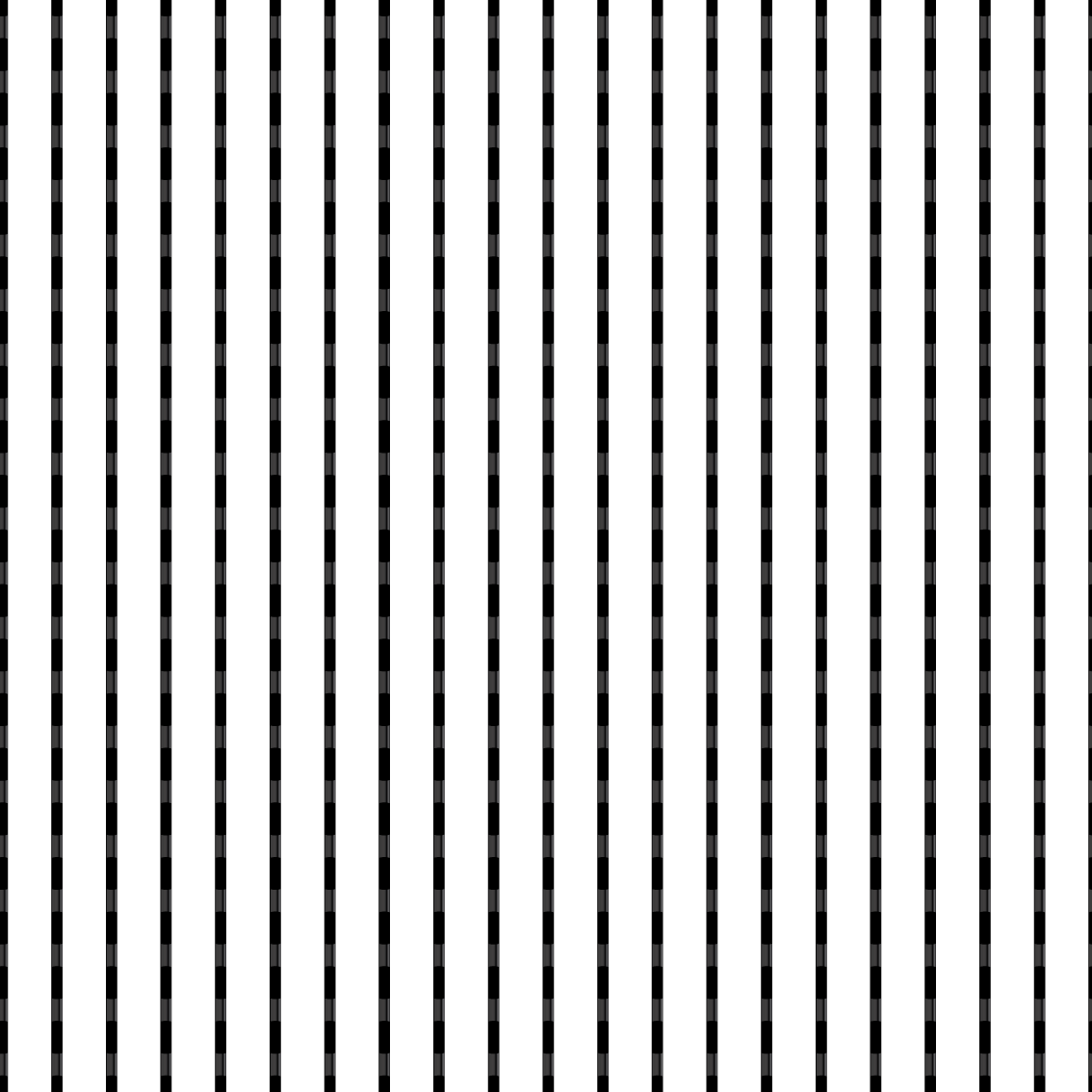

Preview of the perforated pattern on a
light wood laminate, medium wood laminate, solid color laminate ou metal laminate
Customizable model. Select the space between the grooves according to required performances or aesthetics.
- CDA : 20 mm / 32 mm / 40 mm / other on request
- Width of groove : 2 mm / 3 mm / 4 mm / other on request
The grooved-perforated patterns are available are available in the following collections:
- Oberflex wood veneers - all wood species
- Pure Paper Color Skin - 25 colors
- Color Anti-fingerprint - 25 colors
- Metal by Oberflex - consult us
Structure of the panel : Oberflex decorative surface (wood, solid color or metal) + 16 mm MDF substrate (natural or black) + balancing + black felt.

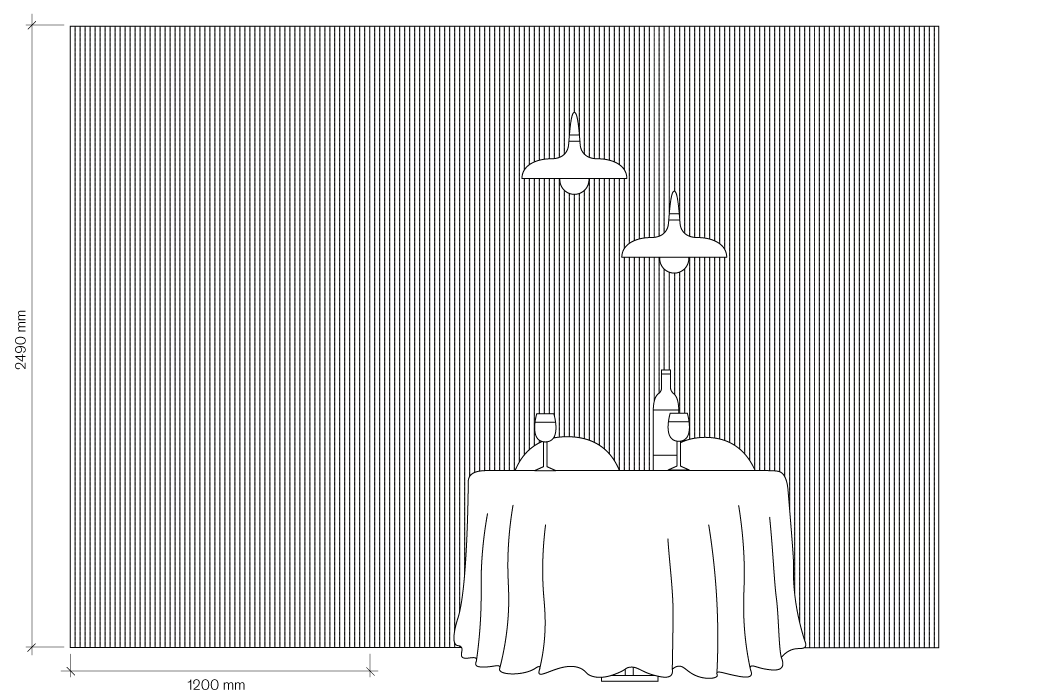

Standard dimension : 2490 x 1200 mm
Other dimensions : custom-made panels according to a plan and/or a cutting list
Total thickness : 18 mm
Fire rating : M1 or Euroclass Bs1d0

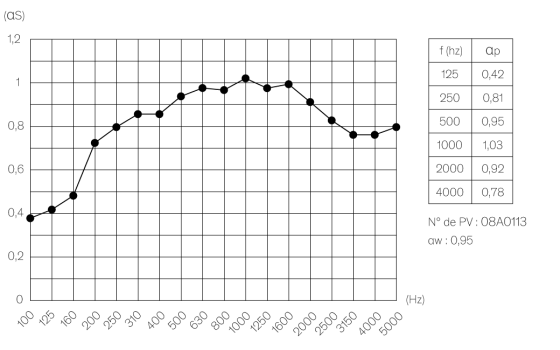

Acoustic performances :
- Average absorption coefficient αw : 0,95 (acoustics results for grooves 4 mm, CDA 20 mm)
- Perforation rate : 12 % (for grooves 4 mm, CDA 20 mm)
Datasheet_Obersound_collections_classiques_grooved_perforated
Acoustic performances
Obersound - How to specify form.pdf
Acoustic performance
Applications
Wall
Ceilings

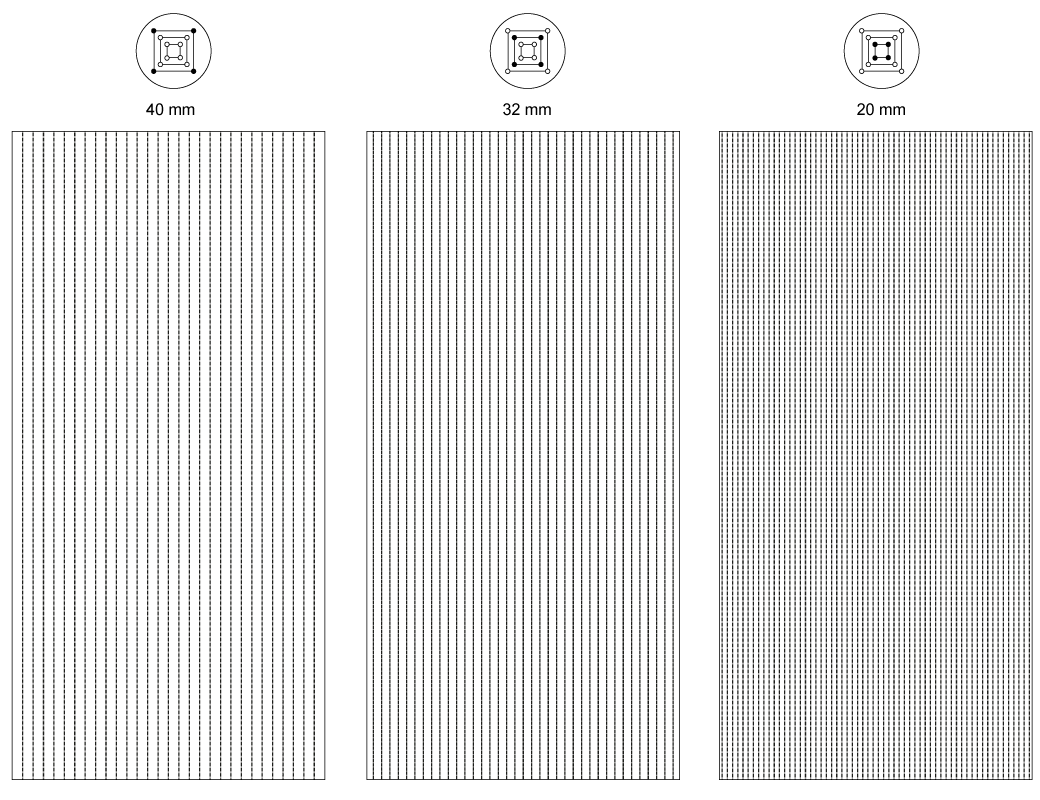

Personnalisation
Select the space between the grooves.
Center distance: 20/32/40 mm
