Preview of the perforated pattern on a
light wood laminate, medium wood laminate, solid color laminate ou metal laminate
Customizable model on configurator.
Structure of the panel : Oberflex decorative surface (wood, solid color or metal) + 16 mm MDF substrate (natural or black) + balancing + black felt. More infos

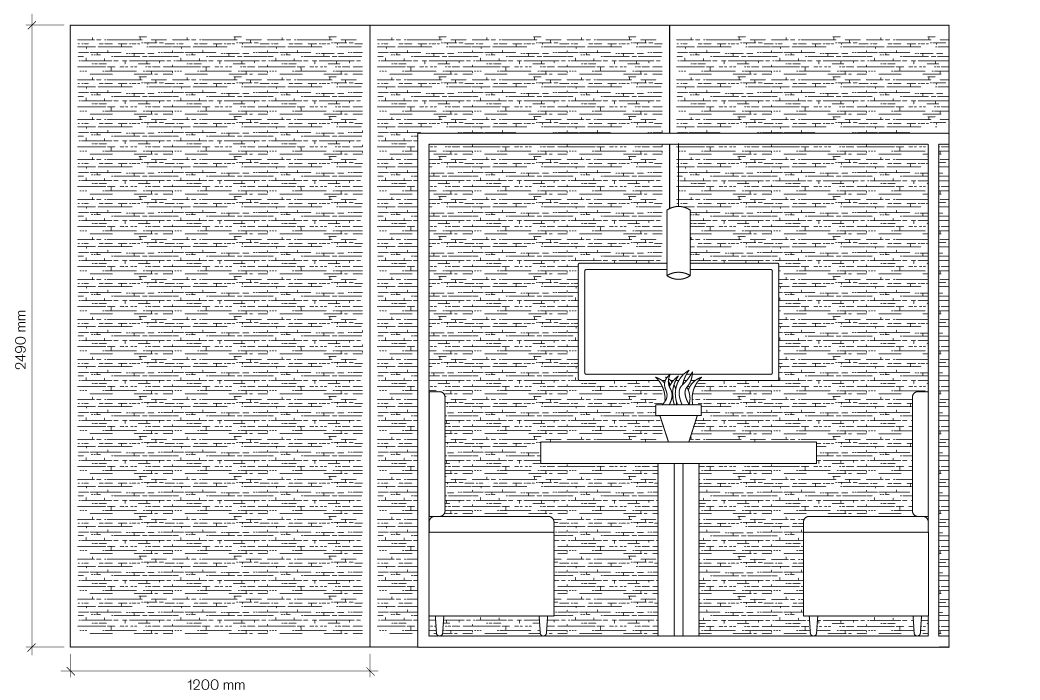

Standard dimension : 1200 x 2490 mm (for wood surfaces, first dimension indicates the wood grain direction )
Other dimensions : custom-made panels according to a plan and/or a cutting list
Total thickness : 18 mm
Fire rating : Euroclass Bs1d0

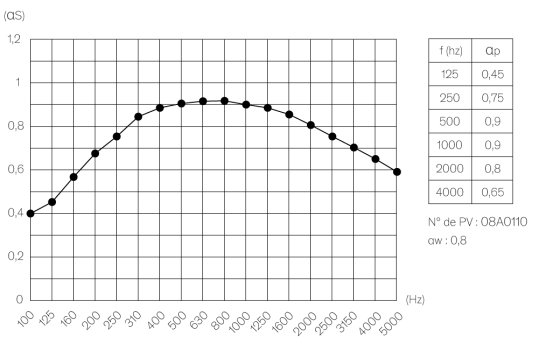

Acoustic performances :
- Average absorption coefficient αw : 0,8
- Perforation rate : 28,6 %
Registered pattern
Datasheet Obersound Crackling
Acoustic test result
Obersound - How to specify form.pdf
Studio 5.5
Acoustic performance
Applications
Wall
Ceilings
Furniture
