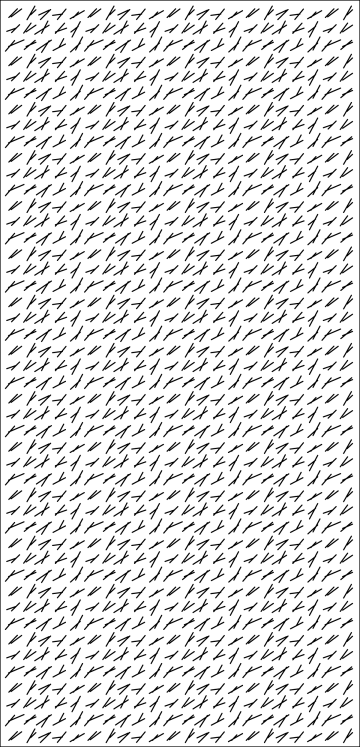

Preview of the perforated pattern on a
light wood laminate, medium wood laminate, solid color laminate ou metal laminate
Customizable model on configurator.
Structure of the panel : Oberflex decorative surface (wood, solid color or metal) + 16 mm MDF substrate (natural or black) + balancing + black felt. More infos

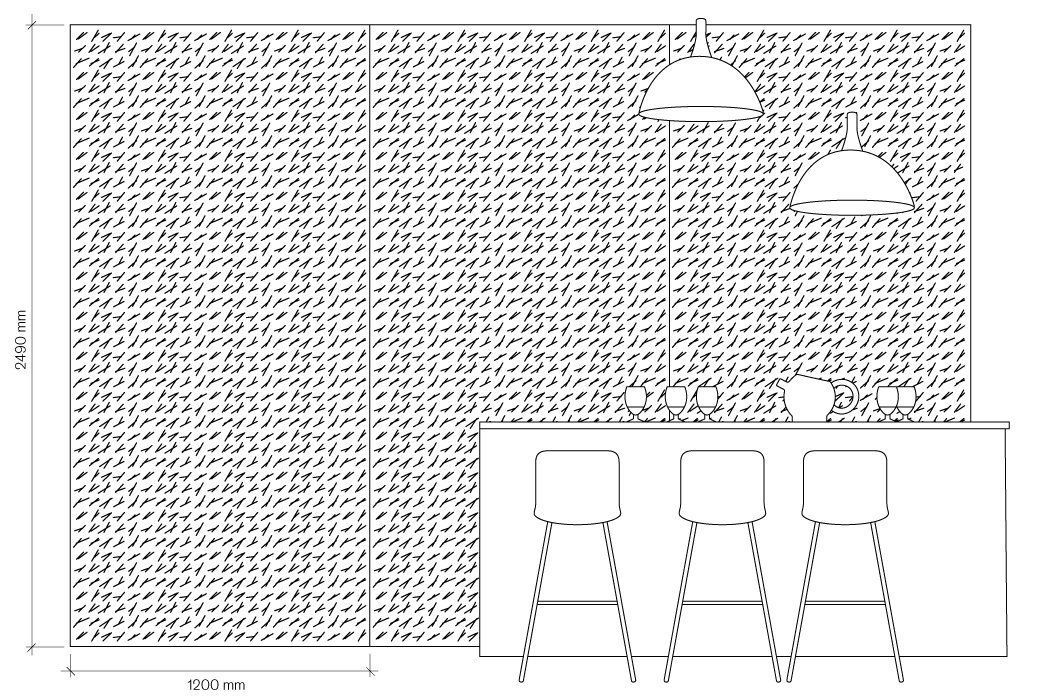

Standard dimension : 2490 x 1200 mm
Other dimensions : custom-made panels according to a plan and/or a cutting list
Total thickness : 18 mm
Fire rating : M1 or Euroclass Bs1d0

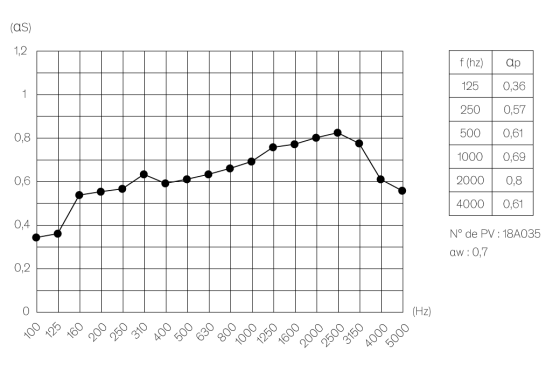

Acoustic performances :
- Average absorption coefficient αw : 0,7 (results based on configuration with the highest perforation rate)
- Perforation rate : 8,54 % (based on configuration with the highest perforation rate)
Registered pattern
Datasheet Obersound Blow
Obersound - How to specify form.pdf
Studio 5.5
Acoustic performance
Applications
Wall
Ceilings
Furniture
Customization

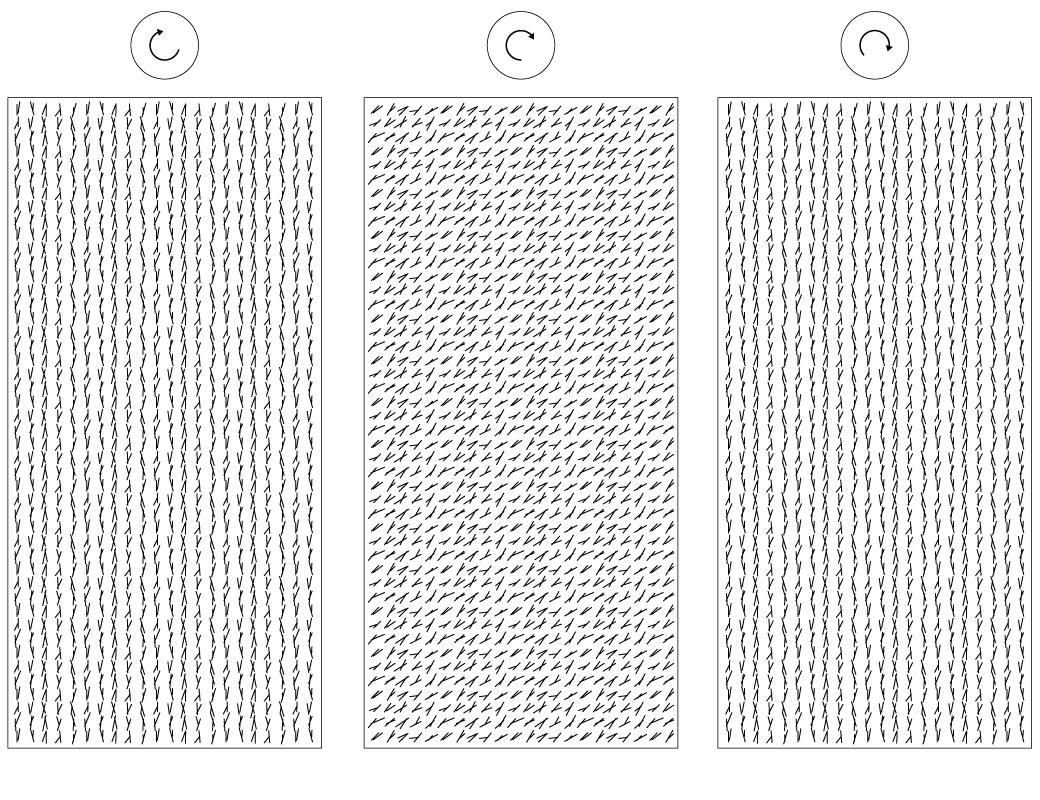

Change the orientation of the pattern and obtain a different angle for the pattern repeat.
